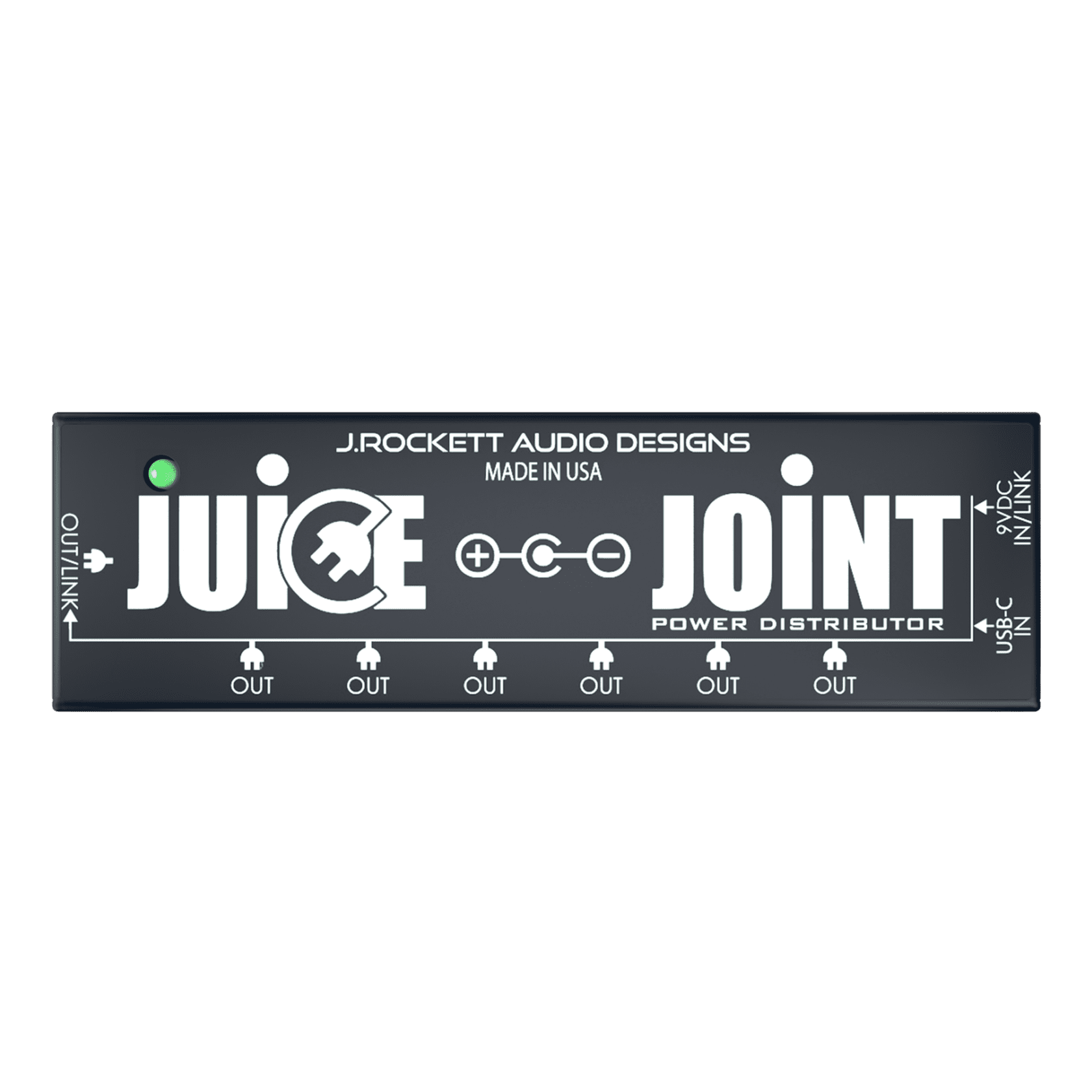

Juice Joint Allows you to dump those awkward daisy chain cables. Each output on the Juice Joint is filtered to help clean up unwanted noises from power supplies. You can easily wire up to 7 total units from one Juice Joint or you can daisy chain as many Juice Joint together as needed.
One of the benefits of using the 9VDC input is that what goes in comes out. If you use a 9VDC power supply you will get 9VDC coming out of each channel. What makes the JUICE JOINT so versatile is that you can input 12VDC/18VDC and 24VDC all up to 2 Amps (2,000mA) and as previously mentioned, what goes in comes out. If you use a 12VDC power supply on the input you will get 12VDC on all of the outputs and so on with 18VDC and 24VDC. The OUT/LINK is the 7th output and is exactly the same as the front outputs and can be used to either link to another JUICE JOINT or power a pedal.
USB-C INPUT – This input is designed to take a typical mobile device charger rated at 5V only. Please do not use anything other than a 5V charger. All 5V chargers are internally converted to 9V inside of the JUICE JOINT. Wattage is not a concern so you can use larger wattage chargers as long as they are 5V. The MAX amperage that the Juice Joint input can take is 2 Amps, please do not exceed 2 Amps on either input.
9VDC INPUT – This input is designed to take a typical barrel jack 2.1mm plug such as our JUICE POWER SUPPLY or anything of the like. The 9VDC input can also act as an extension of a typical linear power supply such as a Voodoo Labs power supply. Keep in mind that if you choose to expand a linear power supply’s individual channel you will be constrained to the voltage output of that specific channel so it will tax that output if too many devices are hooked up.
